Hocheffizienter luftgekühlter Verflüssiger mit dreieckiger Rohranordnung und seitlichem Einlass
-

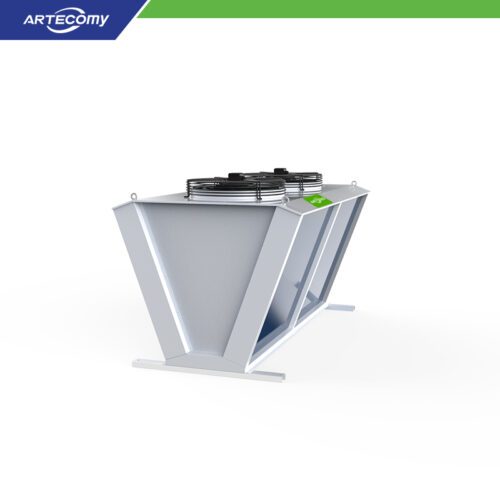

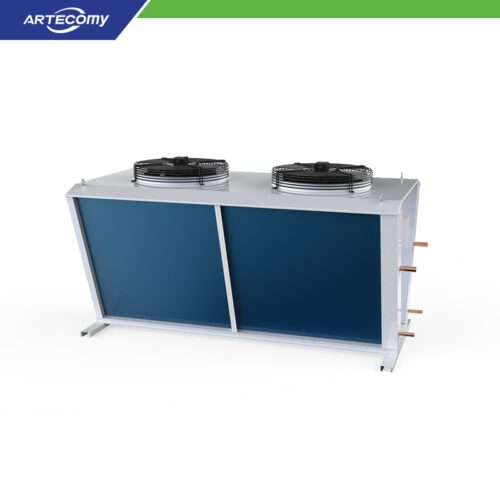

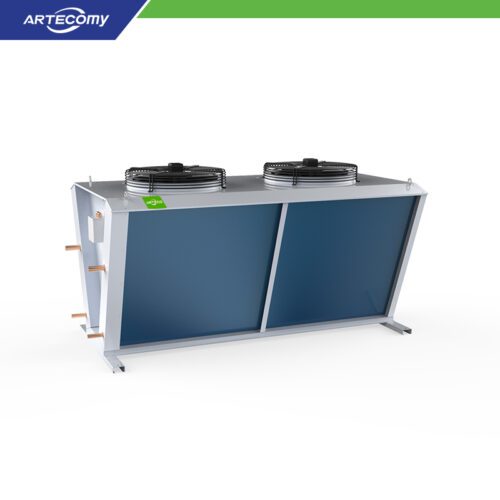

The FV series condenser adopts a V-shaped structure design, with air inlet on both sides and air outlet on the top. lt has a larger windward side, low wind resistance, and good heat transfer effect.

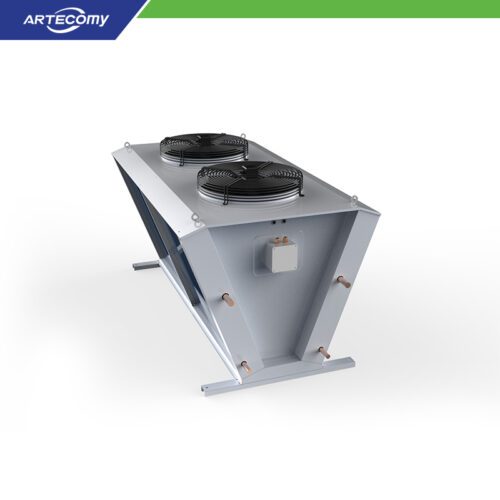

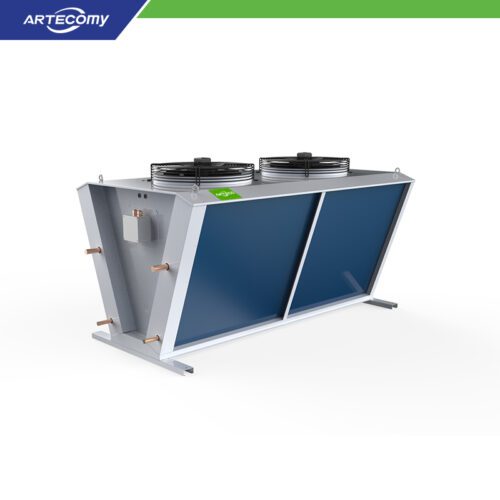

Adopting a box shaped structure, the wind ring adopts a high wind ring design with large rounded corners that are stretched as a whole, which has good air guiding effect and classic appearance.
1. Heat exchange tubes: High efficiency internally threaded copper tubes with a diameter of 9.52 are used, arranged in a triangular pattern with a tube spacing of 25 x 21.65, resulting in high heat exchange efficiency.
2. Hydrophilic aluminum foil corrugated aluminum sheet; The fin space is 2.1mm.
3. The fan specifications adopt external rotor fans with diameters of 500 and 630; Product test pressure: 30bar
4. Can meet the needs of refrigerants such as R404A,R507A, R448A, R449A, R134A, R22. etc.
Angebot anfordern
Geben Sie die benötigte Menge ein und fügen Sie sie Ihrer Angebotsliste für Preisanfragen hinzu.
Wichtige Parameter
Product Parameter
| Model | Heat Exchange (KW) | Area (m²) | Tube Volume (dm³) | Fan | Noise dB(A) | Take Over Specifications | Weight (kg) | |||
| ΔT=15K | Air Volume (m³/h) | Power (W) | Electric Current (A) | Intake | Transudate | |||||
| FV98/502AF | 42.5 | 97.5 | 13.0 | 14000 | 1100 | 2.2 | 72 | 2XΦ28 | 2XΦ22 | 121 |
| FV122/502AF | 48.3 | 121.9 | 16.3 | 13800 | 1100 | 2.2 | 72 | 2XΦ28 | 2XΦ22 | 129 |
| FV146/502AF | 52.6 | 146.3 | 19.5 | 13600 | 1100 | 2.2 | 72 | 2XΦ28 | 2XΦ22 | 137 |
| FV146/503AF | 63.7 | 146.3 | 19.5 | 21000 | 1650 | 3.3 | 72 | 2XΦ28 | 2XΦ22 | 167 |
| FV183/503AF | 72.4 | 182.8 | 24.4 | 20700 | 1650 | 3.3 | 72 | 2XΦ28 | 2XΦ22 | 180 |
| FV219/503AF | 78.9 | 219.4 | 29.3 | 20400 | 1650 | 3.3 | 72 | 2XΦ28 | 2XΦ22 | 192 |
| FV195/504AF | 85.0 | 195.0 | 26.0 | 28000 | 2200 | 4.4 | 73 | 2XΦ35 | 2XΦ22 | 215 |
| FV244/504AF | 96.5 | 243.8 | 32.6 | 27600 | 2200 | 4.4 | 73 | 2XΦ35 | 2XΦ22 | 231 |
| FV293/504AF | 105.2 | 292.5 | 39.1 | 27200 | 2200 | 4.4 | 73 | 2XΦ35 | 2XΦ22 | 248 |
| FV244/505AF | 106.2 | 243.8 | 32.6 | 35000 | 2750 | 5.5 | 73 | 2XΦ35 | 2XΦ22 | 262 |
| FV305/505AF | 120.6 | 304.7 | 40.7 | 34500 | 2750 | 5.5 | 73 | 2XΦ35 | 2XΦ22 | 282 |
| FV366/505AF | 131.4 | 365.7 | 48.8 | 34000 | 2750 | 5.5 | 73 | 2XΦ35 | 2XΦ22 | 303 |
| FV146/632AF | 63.7 | 146.3 | 19.5 | 20000 | 1874 | 3.5 | 78 | 2XΦ28 | 2XΦ22 | 178 |
| FV183/632AF | 72.4 | 182.8 | 24.4 | 19800 | 1874 | 3.5 | 78 | 2XΦ28 | 2XΦ22 | 191 |
| FV219/632AF | 78.9 | 219.4 | 29.3 | 19600 | 1874 | 3.5 | 78 | 2XΦ28 | 2XΦ22 | 203 |
| FV219/633AF | 95.6 | 219.4 | 29.3 | 30000 | 2811 | 5.3 | 78 | 2XΦ35 | 2XΦ22 | 246 |
| FV274/633AF | 108.6 | 274.2 | 36.6 | 29700 | 2811 | 5.3 | 78 | 2XΦ35 | 2XΦ22 | 265 |
| FV329/633AF | 118.3 | 329.1 | 43.9 | 29400 | 2811 | 5.3 | 78 | 2XΦ35 | 2XΦ22 | 283 |
| FV293/634AF | 127.5 | 292.5 | 39.1 | 40000 | 3748 | 7.0 | 79 | 2XΦ42 | 2XΦ28 | 315 |
| FV366/634AF | 144.8 | 365.7 | 48.8 | 39600 | 3748 | 7.0 | 79 | 2XΦ42 | 2XΦ28 | 340 |
| FV439/634AF | 157.7 | 438.8 | 58.6 | 39200 | 3748 | 7.0 | 79 | 2XΦ42 | 2XΦ28 | 364 |
| FV366/635AF | 159.3 | 365.7 | 48.8 | 50000 | 4685 | 8.8 | 79 | 2XΦ50 | 2XΦ35 | 383 |
| FV457/635AF | 181.0 | 457.1 | 61.0 | 49500 | 4685 | 8.8 | 79 | 2XΦ50 | 2XΦ35 | 414 |
| FV548/635AF | 197.2 | 548.5 | 73.2 | 49000 | 4685 | 8.8 | 79 | 2XΦ50 | 2XΦ35 | 445 |
| Model | External Dimensions (mm) | Installation Size (mm) | |||||||||
| L | W | H | A | B | B1 | B2 | B3 | B4 | B5 | Mounting Hole | |
| FV*/502** | 1740 | 980 | 945 | 860 | 1630 | 815 | 815 | / | / | / | 6-Φ13 |
| FV*/503** | 2540 | 980 | 945 | 860 | 2430 | 815 | 800 | 815 | / | / | 8-Φ13 |
| FV*/504** | 3340 | 980 | 945 | 860 | 3230 | 815 | 800 | 800 | 815 | / | 10-Φ13 |
| FV*/505** | 4140 | 980 | 945 | 860 | 4030 | 815 | 800 | 800 | 800 | 815 | 12-Φ13 |
| FV*/632** | 1740 | 1250 | 1330 | 1160 | 1630 | 815 | 815 | / | / | / | 6-Φ13 |
| FV*/633** | 2540 | 1250 | 1330 | 1160 | 2430 | 815 | 800 | 815 | / | / | 8-Φ13 |
| FV*/634** | 3340 | 1250 | 1330 | 1160 | 3230 | 815 | 800 | 800 | 815 | / | 10-Φ13 |
| FV*/635** | 4140 | 1250 | 1330 | 1160 | 4030 | 815 | 800 | 800 | 800 | 815 | 12-Φ13 |
