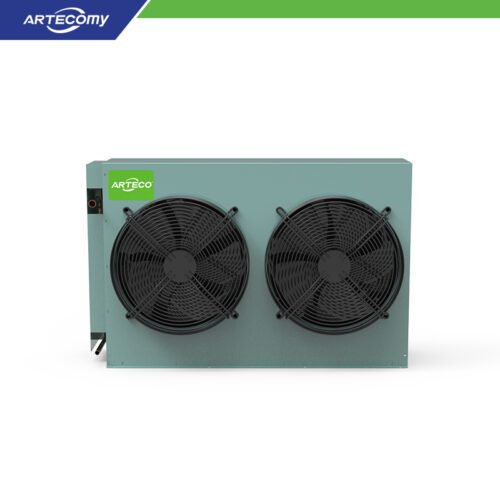

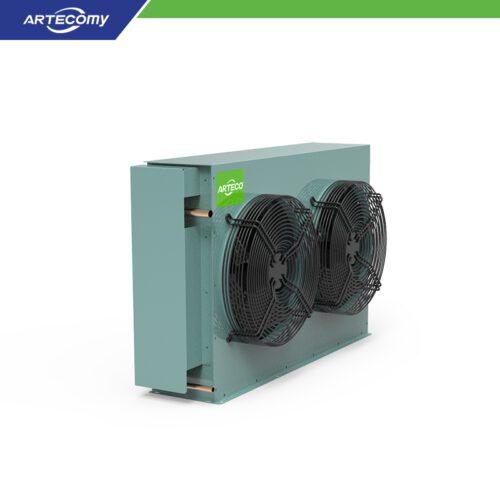

Double Fan Vertical XC Condenser with Efficient Copper Coils and Φ500 Fan Option
-
The XC series condenser adopts a vertical side mounted structure, with air inlet at the back and air outlet at the front.
Adopting a vertical side mounted structure, the condenser can be stacked for installation, saving installation space and having a modern appearance.
1. Heat exchange tubes: High efficiency internally threaded copper tubes with a diameter of 9.52 are used, arranged in a triangular pattern with a tube spacing of25 x 21.65, resulting in high heat exchange efficiency.
2. Hydrophilic aluminum foil corrugated aluminum sheet; The fin space is 2.1mm.
3. The fan specifications adopt external rotor fans with diameters of 400, 450, 500, and 550; Product test pressure: 30bar.
4. Can meet the needs of refrigerants such as R404A, R507A, R448A,R449A, R134A, R22, etc.
Angebot anfordern
Geben Sie die benötigte Menge ein und fügen Sie sie Ihrer Angebotsliste für Preisanfragen hinzu.
Wichtige Parameter
Product Parameter
| Model | Heat Exchange (KW) | Area (m²) | Tube Volume (dm³) | Fan | Noise dB(A) | Take Over Specifications | Weight (kg) | |||
| ΔT=15K | Air Volume (m³/h) | Power (W) | Electric Current (A) | Intake | Transudate | |||||
| XC19/401X | 8.9 | 19.2 | 2.6 | 3250 | 216 | 0.46 | 69 | Φ16 | Φ12.7 | 16 |
| XC24/401X | 10.1 | 24.0 | 3.2 | 3100 | 216 | 0.46 | 69 | Φ16 | Φ12.7 | 18 |
| XC31/402X | 15.7 | 31.2 | 4.1 | 6800 | 432 | 0.92 | 69 | Φ22 | Φ16 | 27 |
| XC42/402X | 18.8 | 41.6 | 5.5 | 6500 | 432 | 0.92 | 69 | Φ22 | Φ16 | 31 |
| XC52/402X | 20.9 | 52.0 | 6.9 | 6200 | 432 | 0.92 | 69 | Φ22 | Φ16 | 34 |
| XC64/452X | 27.1 | 64.0 | 8.5 | 8500 | 580 | 1.2 | 69 | Φ22 | Φ16 | 46 |
| XC80/452X | 30.0 | 80.0 | 10.6 | 8200 | 580 | 1.2 | 69 | Φ22 | Φ16 | 51 |
| XC77/404X | 36.3 | 76.8 | 10.2 | 13600 | 864 | 1.8 | 69 | Φ28 | Φ22 | 70 |
| XC102/404X | 42.7 | 102.4 | 13.6 | 13000 | 864 | 1.8 | 69 | Φ28 | Φ22 | 79 |
| XC128/454X | 53.4 | 128.0 | 17.0 | 16400 | 1160 | 2.4 | 69 | Φ28 | Φ22 | 89 |
| XC154/454X | 57.5 | 153.6 | 20.4 | 15600 | 1160 | 2.4 | 69 | Φ28 | Φ22 | 98 |
| XC174/504X | 79.2 | 173.7 | 23.1 | 27920 | 2192 | 4.4 | 72 | Φ35 | Φ28 | 121 |
| XC217/504X | 89.7 | 217.1 | 28.9 | 27200 | 2192 | 4.4 | 72 | Φ35 | Φ28 | 137 |
| XC261/554X | 104.1 | 260.5 | 34.6 | 30400 | 2680 | 5.1 | 74 | Φ35 | Φ28 | 152 |
| XC254/506X | 116.8 | 253.7 | 33.7 | 41880 | 3288 | 6.6 | 72 | Φ42 | Φ28 | 169 |
| XC317/506X | 132.5 | 317.1 | 42.2 | 40800 | 3288 | 6.6 | 72 | Φ42 | Φ28 | 192 |
| XC381/556X | 154.1 | 380.5 | 50.6 | 45600 | 4020 | 7.6 | 74 | Φ42 | Φ28 | 214 |
| Model | External Dimensions (mm) | Installation Size (mm) | ||||
| L | W | H | A | B | Mounting Hole | |
| XC*/401X | 660 | 270 | 490 | 540 | 160 | Φ9 |
| XC*/402X | 1010 | 270 | 640 | 900 | 160 | Φ9 |
| XC*/452X | 1220 | 270 | 790 | 1100 | 160 | Φ9 |
| XC*/404X | 1220 | 441 | 1240 | 1078 | 160 | Φ9 |
| XC*/454X | 1220 | 441 | 1240 | 1078 | 160 | Φ9 |
| XC*/504X | 1640 | 449 | 1530 | 1400 | 200 | Φ9 |
| XC*/554X | 1640 | 449 | 1530 | 1400 | 200 | Φ9 |
| XC*/506X | 2340 | 449 | 1530 | 2100 | 200 | Φ9 |
| XC*/556X | 2340 | 449 | 1530 | 2100 | 200 | Φ9 |
