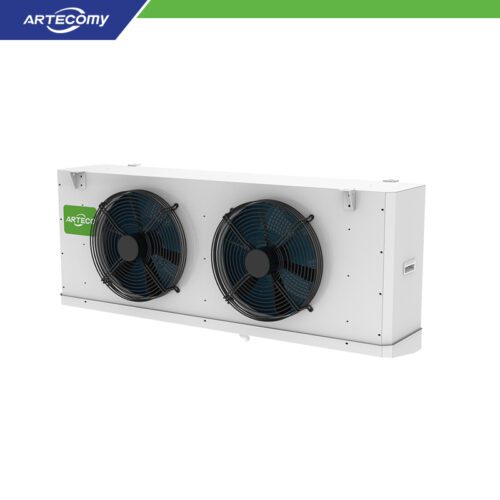

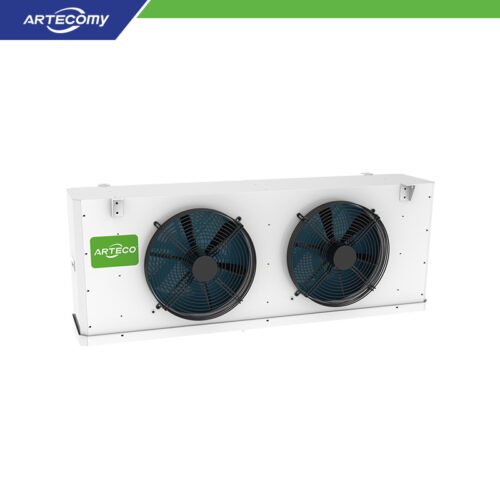

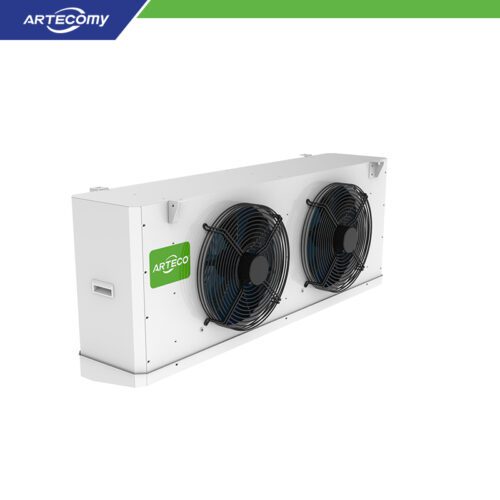

2-Lüfter-Kälteverdampfer Dauerhafte Kühlung für Fischverarbeitungsbetriebe
- Casing:High-quality galvanized steel with powder coating, excellent corrosion resistance; side panels secured with screws for tight sealing.
Double Water Pan:Angled diamond outer pan for smooth, residue-free drainage; aluminum trough inner pan.
Coils:Ø9.52mm internally grooved copper tubes, 36×31.18 inverted delta arrangement for large heat transfer area and small temperature difference.
Fins:Hydrophilic corrugated aluminum fins with 4.5mm, 6.0mm, and 9.0mm fin spacing to meet various temperature and humidity requirements.
Fan Cowl:Integrated large arc design for good airflow, long throw, and low noise.
Fans:High-power external rotor fans, operating temperature -20℃ to -40℃; available in Ø350, Ø400, and Ø450 sizes.
Defrost:Standard electric defrost with stainless steel heating tubes evenly distributed in coil fins and inner water pan; independent heating tube junction box. Optional accessories like expansion valves and fan ring heating belts are available upon request.
Refrigerants:Compatible with R404A, R507A, R448A, R449A, R134A, R22, etc.
Angebot anfordern
Geben Sie die benötigte Menge ein und fügen Sie sie Ihrer Angebotsliste für Preisanfragen hinzu.
Wichtige Parameter
Product Parameters
| Model | Refrigeration Capacity/R404A(KW) | Area (m²) | Tube Volume (dm³) | Air Volume (m³/h) | Range (m) | Interface Specifications | Weight (kg) | |||
| Tc=0℃ △T=8K |
Tc=-18℃ △T=7K |
Feed Liquor | Return Air | Drainage | ||||||
| 350 Fan Series | ||||||||||
| XL2.0/351MB | 2.0 | 1.6 | 10.8 | 1.7 | 2300 | 7 | Φ12.7 | Φ19 | G1″ | 34 |
| XL2.6/351MB | 2.6 | 2.0 | 16.2 | 2.5 | 2000 | 7 | Φ12.7 | Φ19 | G1″ | 36 |
| XL3.9/352MB | 3.9 | 3.0 | 21.6 | 3.4 | 4600 | 8 | Φ12.7 | Φ19 | G1″ | 54 |
| XL5.4/352MB | 5.4 | 4.2 | 32.4 | 5.1 | 4000 | 8 | Φ12.7 | Φ22 | G1″ | 60 |
| XL6.0/353MB | 6.0 | 4.7 | 32.4 | 5.1 | 6900 | 9 | Φ12.7 | Φ22 | G1″ | 75 |
| XL8.1/353MB | 8.1 | 6.3 | 48.6 | 7.6 | 6000 | 9 | Φ12.7 | Φ22 | G1″ | 83 |
| XL8.1/354MB | 8.1 | 6.3 | 43.2 | 6.7 | 9200 | 10 | Φ12.7 | Φ22 | G1″ | 96 |
| XL10.6/354MB | 10.6 | 8.3 | 64.8 | 10.1 | 8000 | 10 | Φ16 | Φ28 | G1″ | 106 |
| 450 Fan Series | ||||||||||
| XL4.5/451MA | 4.5 | 3.5 | 25.3 | 3.9 | 4300 | 12 | Φ12.7 | Φ22 | G1″ | 50 |
| XL5.4/451MA | 5.4 | 4.2 | 33.7 | 5.3 | 3900 | 12 | Φ12.7 | Φ22 | G1″ | 55 |
| XL9.1/452MA | 9.1 | 7.1 | 50.5 | 7.9 | 8600 | 13 | Φ16 | Φ28 | G1″ | 84 |
| XL10.8/452MA | 10.8 | 8.4 | 67.4 | 10.5 | 7800 | 13 | Φ16 | Φ28 | G1″ | 93 |
| XL14.0/453MA | 14.0 | 10.9 | 77.6 | 11.8 | 12900 | 14 | Φ22 | Φ35 | 2G1″ | 120 |
| XL16.6/453MA | 16.6 | 12.9 | 107.6 | 15.8 | 11700 | 14 | Φ22 | Φ35 | 2G1″ | 133 |
| XL18.2/454MA | 18.2 | 14.2 | 101.1 | 15.8 | 17200 | 15 | Φ22 | Φ35 | 2G1″ | 153 |
| XL21.6/454MA | 21.6 | 16.8 | 134.8 | 21.0 | 15600 | 15 | Φ22 | Φ35 | 2G1″ | 169 |
| 550 Fan Series | ||||||||||
| XL9.8/551MA | 9.8 | 7.6 | 54.5 | 8.5 | 7400 | 18 | Φ16 | Φ28 | G1″ | 82 |
| XL11.4/551MA | 11.4 | 8.9 | 68.0 | 10.6 | 7000 | 18 | Φ16 | Φ28 | G1″ | 89 |
| XL12.5/551MA | 12.5 | 9.8 | 81.6 | 12.7 | 6600 | 18 | Φ16 | Φ28 | G1″ | 95 |
| XL19.6/552MA | 19.6 | 15.3 | 108.8 | 17.0 | 14800 | 20 | Φ22 | Φ35 | G1″ | 143 |
| XL22.9/552MA | 22.9 | 17.9 | 136.0 | 21.2 | 14000 | 20 | Φ22 | Φ35 | G1″ | 156 |
| XL25.0/552MA | 25.0 | 19.5 | 163.3 | 25.5 | 13200 | 20 | Φ22 | Φ35 | G1″ | 169 |
| XL29.4/553MA | 29.4 | 22.9 | 163.3 | 25.5 | 22200 | 22 | Φ28 | Φ42 | 2G1″ | 204 |
| XL34.3/553MA | 34.3 | 26.8 | 204.1 | 31.8 | 21000 | 22 | Φ28 | Φ42 | 2G1″ | 224 |
| XL37.5/553MA | 37.5 | 29.3 | 244.9 | 38.2 | 19800 | 22 | Φ28 | Φ50 | 2G1″ | 245 |
| XL39.2/554MA | 39.2 | 30.6 | 217.7 | 34.0 | 29600 | 24 | Φ28 | Φ50 | 3G1″ | 266 |
| XL45.7/554MA | 45.7 | 35.6 | 272.1 | 42.5 | 28000 | 24 | Φ28 | Φ50 | 3G1″ | 291 |
| XL50.0/554MA | 50.0 | 39.0 | 326.5 | 50.9 | 26400 | 24 | Φ28 | Φ50 | 3G1″ | 319 |
| 630 Fan Series | ||||||||||
| XL15.9/631MA | 15.9 | 12.4 | 93.3 | 14.6 | 10100 | 28 | Φ22 | Φ28 | G1″ | 120 |
| XL18.8/631MA | 18.8 | 14.7 | 116.6 | 18.2 | 9800 | 28 | Φ22 | Φ35 | G1″ | 132 |
| XL21.0/631MA | 21.0 | 16.4 | 139.9 | 21.8 | 9500 | 28 | Φ22 | Φ35 | G1″ | 143 |
| XL31.7/632MA | 31.7 | 24.7 | 186.6 | 29.1 | 20200 | 30 | Φ22 | Φ42 | 2G1″ | 212 |
| XL37.3/632MA | 37.3 | 29.1 | 233.2 | 36.4 | 19600 | 30 | Φ22 | Φ42 | 2G1″ | 236 |
| XL42.0/632MA | 42.0 | 32.8 | 279.9 | 43.7 | 19000 | 30 | Φ22 | Φ42 | 2G1″ | 258 |
| XL47.6/633MA | 47.6 | 37.1 | 279.9 | 43.7 | 30300 | 32 | Φ28 | Φ50 | 3G1″ | 305 |
| XL56.0/633MA | 56.0 | 43.7 | 349.8 | 54.6 | 29400 | 32 | Φ28 | Φ50 | 3G1″ | 340 |
| XL63.0/633MA | 63.0 | 49.1 | 419.8 | 65.5 | 28500 | 32 | Φ28 | Φ50 | 3G1″ | 374 |
| Note: Tc in the table represents the storage temerature. and △ T represents the difference between the storage temperature and the evaporation temperature. | ||||||||||
| Model | Refrigeration Capacity/R404A(KW) | Area (m²) | Tube Volume (dm³) | Air Volume (m³/h) | Range (m) | Interface Specifications | Weight (kg) | |||
| Tc=0℃ △T=8K |
Tc=-18℃ △T=7K |
Feed Liquor | Return Air | Drainage | ||||||
| 350 Fan Series | ||||||||||
| XL1.4/351LB | 1.8 | 1.4 | 8.2 | 1.7 | 2400 | 7 | Φ12.7 | Φ19 | G1″ | 33 |
| XL1.9/351LB | 2.4 | 1.9 | 12.3 | 2.5 | 2150 | 7 | Φ12.7 | Φ19 | G1″ | 35 |
| XL2.8/352LB | 3.6 | 2.8 | 16.4 | 3.4 | 4800 | 8 | Φ12.7 | Φ19 | G1″ | 52 |
| XL3.8/352LB | 4.9 | 3.8 | 24.6 | 5.1 | 4300 | 8 | Φ12.7 | Φ22 | G1″ | 57 |
| XL4.2/353LB | 5.4 | 4.2 | 24.6 | 5.1 | 7200 | 9 | Φ12.7 | Φ22 | G1″ | 72 |
| XL5.6/353LB | 7.2 | 5.6 | 37.0 | 7.6 | 6450 | 9 | Φ12.7 | Φ22 | G1″ | 79 |
| XL5.6/354LB | 7.2 | 5.6 | 32.9 | 6.7 | 9600 | 10 | Φ16 | Φ28 | G1″ | 92 |
| XL7.5/354LB | 9.6 | 7.5 | 49.3 | 10.1 | 8600 | 10 | Φ16 | Φ28 | G1″ | 101 |
| 450 Fan Series | ||||||||||
| XL2.7/451LA | 3.5 | 2.7 | 19.2 | 3.9 | 4500 | 12 | Φ12.7 | Φ22 | G1″ | 48 |
| XL3.2/451LA | 4.1 | 3.2 | 25.6 | 5.3 | 4100 | 12 | Φ12.7 | Φ22 | G1″ | 52 |
| XL5.5/452LA | 7.1 | 5.5 | 38.4 | 7.9 | 9000 | 13 | Φ16 | Φ28 | G1″ | 80 |
| XL6.5/452LA | 8.3 | 6.5 | 51.3 | 10.5 | 8200 | 13 | Φ16 | Φ28 | G1″ | 87 |
| XL8.3/453LA | 10.6 | 8.3 | 59.2 | 11.8 | 13500 | 14 | Φ22 | Φ35 | 2G1″ | 114 |
| XL9.8/453LA | 12.6 | 9.8 | 78.9 | 15.8 | 12300 | 14 | Φ22 | Φ35 | 2G1″ | 124 |
| XL11.1/454LA | 14.2 | 11.1 | 76.9 | 15.8 | 18000 | 15 | Φ22 | Φ35 | 2G1″ | 144 |
| XL13.2/454LA | 16.9 | 13.2 | 102.5 | 21.0 | 16400 | 15 | Φ22 | Φ35 | 2G1″ | 157 |
| 550 Fan Series | ||||||||||
| XL6.6/551LA | 8.5 | 6.6 | 41.5 | 8.5 | 7600 | 18 | Φ16 | Φ28 | G1″ | 77 |
| XL7.9/551LA | 10.1 | 7.9 | 51.8 | 10.6 | 7200 | 18 | Φ16 | Φ28 | G1″ | 83 |
| XL8.9/551LA | 11.4 | 8.9 | 62.1 | 12.7 | 6900 | 18 | Φ16 | Φ28 | G1″ | 88 |
| XL13.3/552LA | 17.1 | 13.3 | 82.8 | 17.0 | 15200 | 20 | Φ22 | Φ35 | G1″ | 133 |
| XL15.7/552LA | 20.1 | 15.7 | 103.5 | 21.2 | 14400 | 20 | Φ22 | Φ35 | G1″ | 144 |
| XL17.9/552LA | 22.9 | 17.9 | 124.2 | 25.5 | 13800 | 20 | Φ22 | Φ35 | G1″ | 155 |
| XL19.9/553LA | 25.5 | 19.9 | 124.2 | 25.5 | 22800 | 22 | Φ28 | Φ42 | 2G1″ | 190 |
| XL23.6/553LA | 30.3 | 23.6 | 155.3 | 31.8 | 21600 | 22 | Φ28 | Φ42 | 2G1″ | 207 |
| XL26.8/553LA | 34.4 | 26.8 | 186.3 | 38.2 | 20700 | 22 | Φ28 | Φ50 | 2G1″ | 224 |
| XL26.5/554LA | 34.0 | 26.5 | 165.6 | 34.0 | 30400 | 24 | Φ28 | Φ50 | 3G1″ | 246 |
| XL31.5/554LA | 40.4 | 31.5 | 207.0 | 42.5 | 28800 | 24 | Φ28 | Φ50 | 3G1″ | 267 |
| XL35.8/554LA | 45.9 | 35.8 | 248.5 | 50.9 | 27600 | 24 | Φ28 | Φ50 | 3G1″ | 289 |
| 630 Fan Series | ||||||||||
| XL10.8/631LA | 13.8 | 10.8 | 71.0 | 14.6 | 10200 | 28 | Φ22 | Φ28 | G1″ | 111 |
| XL12.8/631LA | 16.4 | 12.8 | 88.7 | 18.2 | 9900 | 28 | Φ22 | Φ35 | G1″ | 121 |
| XL14.5/631LA | 18.6 | 14.5 | 106.5 | 21.8 | 9600 | 28 | Φ22 | Φ35 | G1″ | 131 |
| XL21.6/632LA | 27.7 | 21.6 | 142.0 | 29.1 | 20400 | 30 | Φ22 | Φ42 | 2G1″ | 196 |
| XL25.6/632LA | 32.8 | 25.6 | 177.5 | 36.4 | 19800 | 30 | Φ22 | Φ42 | 2G1″ | 215 |
| XL29.0/632LA | 37.2 | 29.0 | 212.9 | 43.7 | 19200 | 30 | Φ22 | Φ42 | 2G1″ | 234 |
| XL32.5/633LA | 41.7 | 32.5 | 212.9 | 43.7 | 30600 | 32 | Φ28 | Φ50 | 3G1″ | 281 |
| XL38.3/633LA | 49.1 | 38.3 | 266.2 | 54.6 | 29700 | 32 | Φ28 | Φ50 | 3G1″ | 310 |
| XL43.7/633LA | 56.0 | 43.7 | 319.4 | 65.5 | 28800 | 32 | Φ28 | Φ50 | 3G1″ | 338 |
| Note: Tc in the table represents the storage temerature. and △ T represents the difference between the storage temperature and the evaporation temperature. | ||||||||||
| Model | Refrigeration Capacity/R404A(KW) | Area (m²) | Tube Volume (dm³) | Air Volume (m³/h) | Range (m) | Interface Specifications | Weight (kg) | |||
| Tc=0℃ △T=8K |
Tc=-18℃ △T=7K |
Feed Liquor | Return Air | Drainage | ||||||
| 350 Fan Series | ||||||||||
| XL1.1/351JB | 1.4 | 1.1 | 5.6 | 1.7 | 2500 | 7 | Φ12.7 | Φ19 | G1″ | 32 |
| XL1.6/351JB | 2.1 | 1.6 | 8.5 | 2.5 | 2300 | 7 | Φ12.7 | Φ19 | G1″ | 34 |
| XL2.3/352JB | 2.9 | 2.3 | 11.3 | 3.4 | 5000 | 8 | Φ12.7 | Φ19 | G1″ | 50 |
| XL3.1/352JB | 4.0 | 3.1 | 16.9 | 5.1 | 4600 | 8 | Φ12.7 | Φ22 | G1″ | 54 |
| XL3.4/353JB | 4.4 | 3.4 | 16.9 | 5.1 | 7500 | 9 | Φ12.7 | Φ22 | G1″ | 69 |
| XL4.7/353JB | 6.0 | 4.7 | 25.4 | 7.6 | 6900 | 9 | Φ12.7 | Φ22 | G1″ | 74 |
| XL4.5/354JB | 5.8 | 4.5 | 22.5 | 6.7 | 10000 | 10 | Φ12.7 | Φ22 | G1″ | 88 |
| XL6.2/354JB | 7.9 | 6.2 | 33.8 | 10.1 | 9200 | 10 | Φ16 | Φ28 | G1″ | 95 |
| 450 Fan Series | ||||||||||
| XL2.2/451JA | 2.8 | 2.2 | 13.2 | 3.9 | 4700 | 12 | Φ12.7 | Φ22 | G1″ | 46 |
| XL2.6/451JA | 3.3 | 2.6 | 17.6 | 5.3 | 4300 | 12 | Φ12.7 | Φ22 | G1″ | 49 |
| XL4.3/452JA | 5.5 | 4.3 | 26.4 | 7.9 | 9400 | 13 | Φ16 | Φ28 | G1″ | 75 |
| XL5.2/452JA | 6.7 | 5.2 | 35.2 | 10.5 | 8600 | 13 | Φ16 | Φ28 | G1″ | 81 |
| XL6.7/453JA | 8.6 | 6.7 | 40.6 | 11.8 | 14100 | 14 | Φ22 | Φ35 | 2G1″ | 107 |
| XL8.0/453JA | 10.3 | 8.0 | 54.1 | 15.8 | 12900 | 14 | Φ22 | Φ35 | 2G1″ | 115 |
| XL8.5/454JA | 10.9 | 8.5 | 52.7 | 15.8 | 18800 | 15 | Φ22 | Φ35 | 2G1″ | 135 |
| XL10.5/454JA | 13.5 | 10.5 | 70.3 | 21.0 | 17200 | 15 | Φ22 | Φ35 | 2G1″ | 146 |
| 550 Fan Series | ||||||||||
| XL5.7/551JA | 7.3 | 5.7 | 28.5 | 8.5 | 7800 | 18 | Φ16 | Φ28 | G1″ | 72 |
| XL6.9/551JA | 8.8 | 6.9 | 35.5 | 10.6 | 7500 | 18 | Φ16 | Φ28 | G1″ | 77 |
| XL7.9/551JA | 10.1 | 7.9 | 42.6 | 12.7 | 7200 | 18 | Φ16 | Φ28 | G1″ | 81 |
| XL11.5/552JA | 14.7 | 11.5 | 56.8 | 17.0 | 15600 | 20 | Φ22 | Φ35 | G1″ | 123 |
| XL13.6/552JA | 17.4 | 13.6 | 71.2 | 21.2 | 15000 | 20 | Φ22 | Φ35 | G1″ | 132 |
| XL15.8/552JA | 20.3 | 15.8 | 85.2 | 25.5 | 14400 | 20 | Φ22 | Φ35 | G1″ | 141 |
| XL17.0/553JA | 21.8 | 17.0 | 85.2 | 25.5 | 23400 | 22 | Φ28 | Φ42 | 2G1″ | 175 |
| XL20.5/553JA | 26.3 | 20.5 | 106.5 | 31.8 | 22500 | 22 | Φ28 | Φ42 | 2G1″ | 189 |
| XL23.6/553JA | 30.3 | 23.6 | 127.8 | 38.2 | 21600 | 22 | Φ28 | Φ50 | 2G1″ | 202 |
| XL22.6/554JA | 29.0 | 22.6 | 112.6 | 34.0 | 31200 | 24 | Φ28 | Φ50 | 3G1″ | 227 |
| XL27.2/554JA | 34.9 | 27.2 | 142.0 | 42.5 | 30000 | 24 | Φ28 | Φ50 | 3G1″ | 244 |
| XL31.8/554JA | 40.8 | 31.8 | 170.5 | 50.9 | 28800 | 24 | Φ28 | Φ50 | 3G1″ | 261 |
| 630 Fan Series | ||||||||||
| XL9.0/631JA | 11.5 | 9.0 | 48.7 | 14.6 | 10300 | 28 | Φ22 | Φ28 | G1″ | 103 |
| XL10.5/631JA | 13.5 | 10.5 | 60.8 | 18.2 | 10000 | 28 | Φ22 | Φ35 | G1″ | 111 |
| XL11.7/631JA | 15.0 | 11.7 | 73.0 | 21.8 | 9700 | 28 | Φ22 | Φ35 | G1″ | 118 |
| XL17.9/632JA | 22.9 | 17.9 | 97.4 | 29.1 | 20600 | 30 | Φ22 | Φ42 | 2G1″ | 179 |
| XL20.9/632JA | 26.8 | 20.9 | 121.7 | 36.4 | 20000 | 30 | Φ22 | Φ42 | 2G1″ | 195 |
| XL23.4/632JA | 30.0 | 23.4 | 146.0 | 43.7 | 19400 | 30 | Φ22 | Φ42 | 2G1″ | 209 |
| XL26.9/633JA | 34.5 | 26.9 | 146.0 | 43.7 | 30900 | 32 | Φ28 | Φ50 | 3G1″ | 257 |
| XL31.4/633JA | 40.3 | 31.4 | 182.5 | 54.6 | 30000 | 32 | Φ28 | Φ50 | 3G1″ | 279 |
| XL35.0/633JA | 44.9 | 35.0 | 219.1 | 65.5 | 29100 | 32 | Φ28 | Φ50 | 3G1″ | 301 |
| Note: Tc in the table represents the storage temerature. and △ T represents the difference between the storage temperature and the evaporation temperature. | ||||||||||
| Model | Fan Motor | Electric Defrosting | |||||
|---|---|---|---|---|---|---|---|
| Voltage (V) | Power (W) | Electric Current (A) | Rotational Speed (r/min) | Coil：KW | Basin: KW | Total Power | |
| XL*/351** | 220-1 | 165 | 0.75 | 1420 | 2×0.5 | 1×0.5 | 1.5 |
| XL*/352** | 220-1 | 330 | 1.50 | 1420 | 2×0.9 | 1×0.9 | 2.7 |
| XL*/353** | 220-1 | 495 | 2.25 | 1420 | 2×1.3 | 1×1.3 | 3.9 |
| XL*/354** | 220-1 | 660 | 3.00 | 1420 | 2×1.7 | 1×1.7 | 5.1 |
| XL*/451** | 380-3 | 290 | 0.59 | 1328 | 3×0.65 | 1×0.65 | 2.6 |
| XL*/451** | 380-3 | 290 | 0.59 | 1328 | 4×0.65 | 1×0.65 | 3.3 |
| XL*/452** | 380-3 | 580 | 1.18 | 1328 | 3×1.17 | 1×1.17 | 4.7 |
| XL*/452** | 380-3 | 580 | 1.18 | 1328 | 4×1.17 | 1×1.17 | 5.9 |
| XL*/453** | 380-3 | 870 | 1.77 | 1328 | 3×1.73 | 1×1.73 | 6.9 |
| XL*/453** | 380-3 | 870 | 1.77 | 1328 | 4×1.73 | 1×1.73 | 8.7 |
| XL*/454** | 380-3 | 1160 | 2.36 | 1328 | 3×2.2 | 1×2.2 | 8.8 |
| XL*/454** | 380-3 | 1160 | 2.36 | 1328 | 4×2.2 | 1×2.2 | 11.0 |
| XL*/551** | 380-3 | 670 | 1.27 | 1377 | 4×0.8 | 2×0.8 | 6.4 |
| XL*/551** | 380-3 | 670 | 1.27 | 1377 | 6×0.8 | 2×0.8 | 6.4 |
| XL*/552** | 380-3 | 1340 | 2.54 | 1377 | 4×1.6 | 2×1.6 | 9.6 |
| XL*/552** | 380-3 | 1340 | 2.54 | 1377 | 6×1.6 | 2×1.6 | 12.8 |
| XL*/553** | 380-3 | 2010 | 3.81 | 1377 | 4×2.3 | 2×2.3 | 13.8 |
| XL*/553** | 380-3 | 2010 | 3.81 | 1377 | 6×2.3 | 2×2.3 | 18.4 |
| XL*/554** | 380-3 | 2680 | 5.08 | 1377 | 4×3.0 | 2×3.0 | 18.0 |
| XL*/554** | 380-3 | 2680 | 5.08 | 1377 | 6×3.0 | 2×3.0 | 24.0 |
| XL*/631** | 380-3 | 937 | 1.75 | 1378 | 6×1.16 | 2×1.16 | 9.3 |
| XL*/631** | 380-3 | 937 | 1.75 | 1378 | 9×1.16 | 2×1.16 | 12.8 |
| XL*/632** | 380-3 | 1874 | 3.50 | 1378 | 6×2.12 | 2×2.12 | 17.0 |
| XL*/632** | 380-3 | 1874 | 3.50 | 1378 | 9×2.12 | 2×2.12 | 23.3 |
| XL*/633** | 380-3 | 2811 | 5.25 | 1378 | 6×3.1 | 2×3.1 | 24.8 |
| XL*/633** | 380-3 | 2811 | 5.25 | 1378 | 9×3.1 | 2×3.1 | 34.1 |
| Model | External Dimensions (mm) | Installation Size (mm) | ||||||||
| L | W | H | A | B | B1 | B2 | B3 | C | Mounting Hole | |
| XL*/351** | 910 | 430 | 670 | 360 | 540 | 350 | 4-Φ13 | |||
| XL*/352** | 1410 | 430 | 670 | 360 | 1040 | 350 | 4-Φ13 | |||
| XL*/353** | 1910 | 430 | 670 | 360 | 1540 | 350 | 4-Φ13 | |||
| XL*/354** | 2410 | 430 | 670 | 360 | 2040 | 1020 | 350 | 6-Φ13 | ||
| XL*/451** | 1060 | 495 | 775 | 410 | 690 | 450 | 4-Φ13 | |||
| XL*/452** | 1710 | 495 | 775 | 410 | 1340 | 450 | 4-Φ13 | |||
| XL*/453** | 2360 | 495 | 775 | 410 | 1990 | 450 | 4-Φ13 | |||
| XL*/454** | 3010 | 495 | 775 | 410 | 2640 | 1320 | 450 | 6-Φ13 | ||
| XL*/551** | 1310 | 600 | 875 | 510 | 940 | 550 | 4-Φ13 | |||
| XL*/552** | 2210 | 600 | 875 | 510 | 1840 | 920 | 550 | 6-Φ13 | ||
| XL*/553** | 3110 | 600 | 875 | 510 | 2740 | 920 | 1820 | 550 | 8-Φ13 | |
| XL*/554** | 4010 | 600 | 875 | 510 | 3640 | 920 | 1820 | 2720 | 550 | 10-Φ13 |
| XL*/631** | 1610 | 690 | 1070 | 600 | 1240 | 600 | 4-Φ13 | |||
| XL*/632** | 2810 | 690 | 1070 | 600 | 2440 | 1220 | 600 | 6-Φ13 | ||
| XL*/633** | 4010 | 690 | 1070 | 600 | 3640 | 1220 | 2420 | 600 | 8-Φ13 | |
Spezifikationen
Reliable Manufacturer of Commercial Refrigeration Equipment
We are a professional refrigeration equipment manufacturer with a 150,000 sqm modern factory in China. With advanced production lines and an experienced R&D team, we specialize in producing a wide range of cold storage solutions and commercial refrigeration systems. Our main products include condensing units, air coolers, cold room panels, cold storage doors, and refrigeration compressors. We support OEM & ODM services to meet the diverse needs of global B2B customers.
Exhibitions
Connect with Us at Industry Trade Shows
We regularly attend both domestic and international refrigeration exhibitions to stay up to date with industry trends and connect with global clients. We also support our agents and partners to participate in local expos. Welcome to meet us at upcoming trade fairs!
Why Choose Us?
30+ Years of Manufacturing Expertise
With over 30 years of experience in refrigeration equipment manufacturing, we’re more than just a supplier—we are a strategic partner to help you scale your business. Our factory and engineering team are dedicated to delivering reliable, energy-efficient products that meet commercial and industrial demands.
High-Quality Materials for Better Performance
We use only top-grade materials to ensure long-lasting and stable performance:Aluminum fins and copper tubes for efficient heat exchange;Heater pipes and water collection plates for better defrost;Solid structure and optimized internal design for energy savings;While many suppliers cut corners, we believe in delivering value and quality to every order.
100% Quality Control Process
6-Step Quality Control: Every Product inspected Before Delivery
Certified Reliability
Certified Quality You Can Trust
All of our products are certified with ISO9001 and CE, meeting international quality standards for safety, durability, and environmental responsibility. These certifications give our partners the confidence they need for large-scale projects.
FAQ
Sind Sie eine Fabrik oder ein Handelsunternehmen?
We are a leading manufacturer specializing in cold chain infrastructure, including polyurethane (PU) insulation panels and high-performance refrigeration equipment. Headquartered in Foshan, China, we operate a modern facility with a skilled technical team. To serve our global partners more effectively, we have expanded our production footprint with strategic factories in Malaysia, Vietnam, Indonesia, and Kuwait. We offer comprehensive OEM/ODM services tailored to your specific project requirements and international standards. We welcome global clients to visit our facilities at any time to see our production expertise firsthand
Can I get a sample?
Yes, samples are available. However, the cost and shipping will be at your expense.
Can you produce based on our design or drawing?
Absolutely. We can manufacture based on your samples, drawings, or technical specifications.
Can I use my own logo or branding?
Yes, we support OEM & ODM. Your logo and design can be applied to the product and packaging.
How do you usually pack the goods?
We use bulk packaging or sturdy wooden boxes suitable for container shipping. Customized packaging is also available upon request.
How do you ensure product quality?
We have a strict quality control process, including appearance check, leak test, electrical safety test, and final inspection before shipment. All products are ISO9001 and CE certified.
